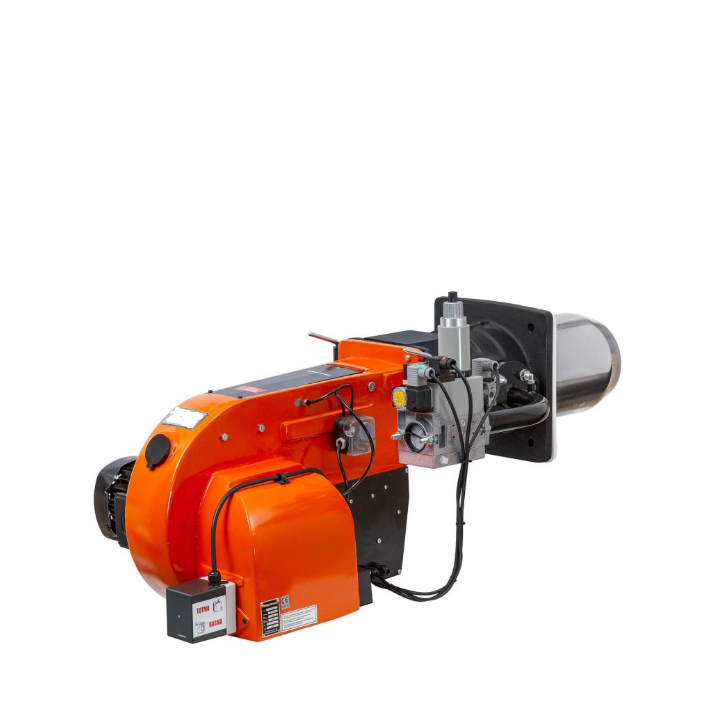

Automated Two-Stage Progressive Modulating Burners, AG-ECO

General Requirements

The burner shall be an automatic two-stage progressive modulating gas burner, suitable for installation on industrial boilers, steam generators, process heaters and similar fired equipment.

The burner shall be factory assembled, tested and supplied as a complete package ready for installation and commissioning.

Burner Type & Fuel

Parameter	Requirement
Burner Type	Two-Stage Progressive / Modulating
Model/Series	AG-ECO Type
Operation	Fully Automatic
Fuel	Natural Gas / Associated Gas
Ignition	Automatic
Flame Monitoring	Required
Combustion Air	Forced Draft

Capacity & Performance

Parameter	Requirement
Maximum Heat Input	Supplier to specify
Minimum Heat Input	Supplier to specify
Modulation Ratio	Supplier to specify
Fuel Gas Consumption	Supplier to specify
Combustion Air Flow	Supplier to specify
Thermal Efficiency	Supplier to guarantee

The burner shall provide stable combustion throughout the complete operating range.

Supplier Data Sheet

No.	Parameter	Purchaser Requirement
1	Burner Type	AG-ECO, Two-Stage Progressive Modulating
2	Fuel	Natural/Associated Gas
3	Max. Heat Input	TBD
4	Min. Heat Input	TBD
5	Modulation Ratio	Vendor to Specify
6	Gas Consumption	Vendor to Specify
7	Gas Pressure	Vendor to Specify
8	Combustion Air Flow	Vendor to Specify
9	Fan Motor Power	Vendor to Specify
10	Electrical Supply	380/400 V, 3 Ph, 50 Hz
11	Flame Detector	Required
12	BMS	Required
13	Hazardous Area	As per Project
14	Ambient Temperature	−40 to +50°C
15	Weight	Vendor to Specify
16	Dimensions	Vendor to Specify
17	Warranty	≥12 months

Electrical & Hazardous Area Requirements

Parameter	Requirement
Power Supply	380/400 VAC, 3 Phase, 50 Hz
Control Voltage	24 VDC / 230 VAC
Enclosure	Minimum IP65
Hazardous Area	As per Project Classification
Ex Certification	IECEx / ATEX or approved equivalent, where required

Supplier shall provide complete electrical load and wiring information.

Gas Train The complete gas train shall be supplied with the burner and shall include, as a minimum: Manual isolation valve Gas filter Pressure regulator Gas pressure gauge Minimum/maximum gas pressure switches Safety shut-off valves Automatic/modulating gas control valve

Combustion Air & Modulation The burner shall be equipped with a forced-draft fan and automatic air-control system. Fuel and combustion air shall be automatically adjusted according to the required firing rate. The system shall provide: Low Fire → Progressive Firing → Modulating Operation → High Fire

Ignition & Flame Safety The burner shall include: Automatic ignition system Ignition transformer/electrode Flame detector Flame failure protection Automatic fuel shut-off Failure of flame establishment or flame loss during operation shall automatically shut off the fuel supply.

Burner Management & Control The burner shall include an automatic Burner Management System (BMS) providing: Pre-purge Automatic ignition Flame verification Firing-rate control Automatic shutdown Post-purge Alarm and lockout indication The burner shall be compatible with the control system of the associated boiler/heater.

Safety Protection Automatic shutdown shall be provided for, as applicable: Flame failure Low/high gas pressure Combustion air failure Fan failure Emergency stop Control system fault High process temperature/pressure Safety shut-off valves shall be fail-safe.

Materials & Environmental Conditions The burner shall be suitable for outdoor oil & gas service. Unless otherwise specified: Ambient temperature: −40°C to +50°C Industrial/oil & gas environment Corrosion-resistant external coating Heat-resistant combustion head and flame components

Inspection & Testing The Supplier shall perform, as a minimum: Visual and dimensional inspection Gas tightness test Ignition test Flame failure test Safety interlock test BMS functional test Minimum/maximum firing test Modulation test A Factory Acceptance Test (FAT) report shall be provided.

Documentation & Spare Parts Supplier shall provide: Burner datasheet GA drawing Gas train drawing P&ID Electrical/wiring diagram Control philosophy BMS/Cause & Effect Fuel consumption data Performance test report Certificates Operation & Maintenance Manual Recommended spare parts list for 2 years
